EUROLITE Set 2x LED BAR-6 QCL RGB+UV Bar + Soft-Bag

EUROLITE Set 2x LED BAR-6 QCL RGB+UV Leiste + Soft-Bag

€189.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 120031715

EAN: 4026397670998

MPN: 20000660

2x Light effect bar (60 cm) with RGB+UV color mixing including soft bag EUROLITE LED BAR-6 QCL... more

Back to the overview

All information about the product:

"EUROLITE Set 2x LED BAR-6 QCL RGB+UV Bar + Soft-Bag"

2x Light effect bar (60 cm) with RGB+UV color mixing including soft bag

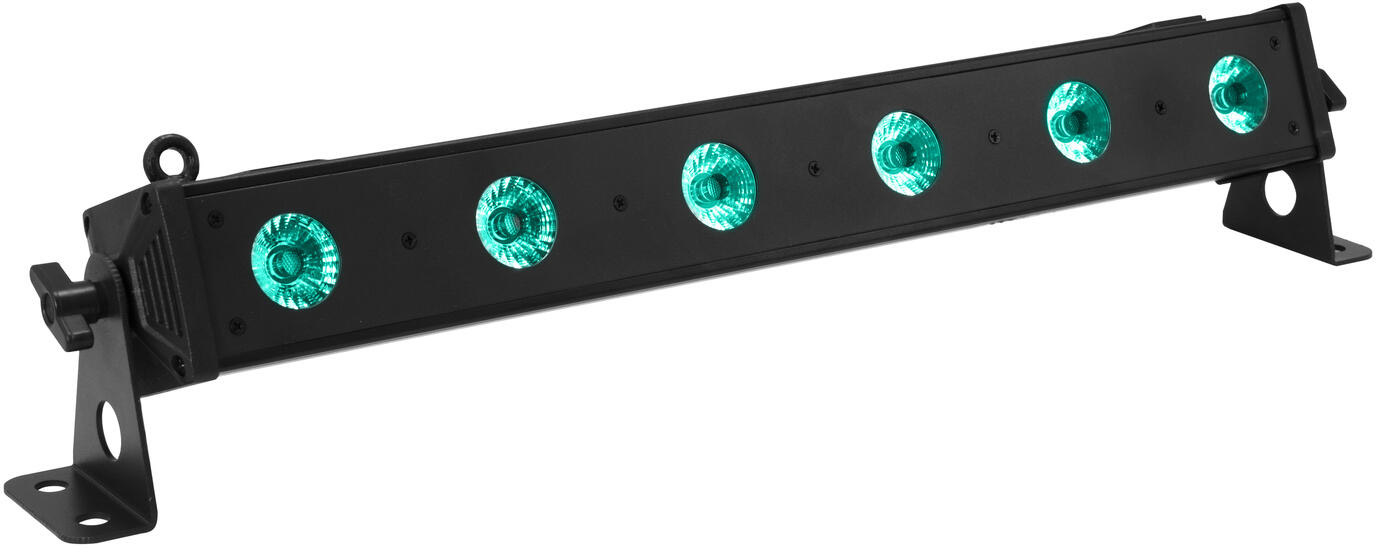

EUROLITE LED BAR-6 QCL RGB+UV Bar

Light effect bar (60 cm) with RGB+UV color mixing

6 powerful LEDs 4 W high-power 4in1 QCL RGB/UV (homogenous color mix)
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
Strobe effect; UV effect
Integrated show programs
Direct color selection for 20 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With Mounting bracket
4 digit 7-segment LED display
Silent operation
Preprogrammed in LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
Mains input and output for power linking up to 8 units
For further information about this product, please refer to the Data Sheet under "Downloads"

Package contents

1 x bar, 1 x power cord, 2 x mounting bracket, 2 x knurled screw, 2 x washer, 1 x user manual

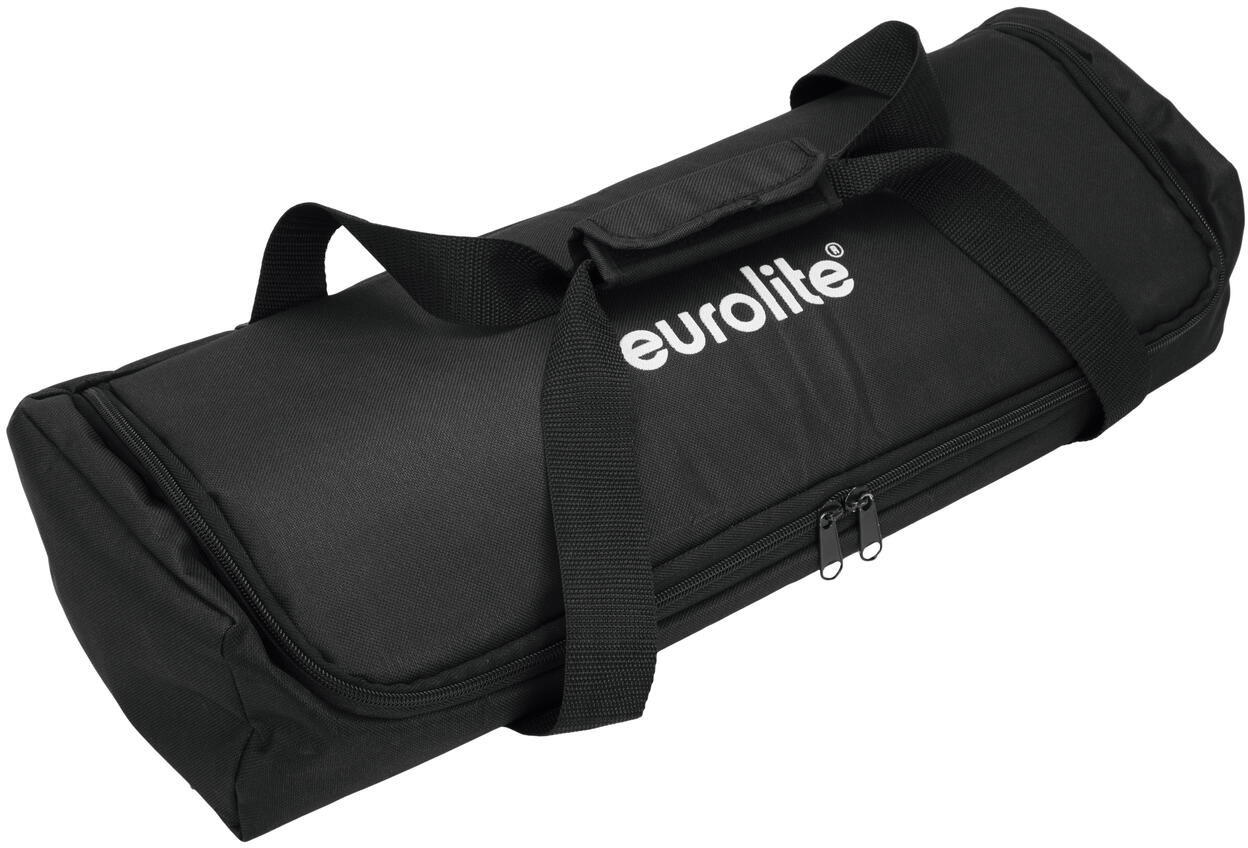

EUROLITE SB-205 Soft Bag

Universal softbag

Ideal for e.g. LED bars with 50 cm length and accessories
High-quality workmanship with nylon , black
With divider
With 2 Device compartments
Interior with foam padding
2 Rugged carrying handles

Weight:	3,80 kg
EUROLITE LED BAR-6 QCL RGB+UV Bar
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	14 W
IP classification:	IP20
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:	1 x IEC connector (F) mounting version
Lamp type:	LED lamp
LED:	6 x 4 W high-power 4in1 QCL RGB/UV (homogenous color mix)
Flash rate:	0 - 20 Hz
DMX channels:	2; 4; 5; 9; 6
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:	LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
Beam angle (1/2 peak):	20°
Beam angle (1/10 peak):	33°
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	4 digit 7-segment LED display
Dimensions:	Length: 59,5 cm Depth: 6,5 cm Height: 10,3 cm
Weight:	1,75 kg
Noise classification:	Class 0 (no noise at all)
Photobiological safety:	Risk Group 0
Power cord
Cable construction:	3 x 0,75 mm² H05VV-F
Cable length:	Approx. 1,1 m
Mounting bracket
Diameter mounting holes:	1 x Ø20mm; 1 x Ø11mm; 1 x Ø8mm; 2 x Ø7mm
Material:	Metal, 2 mm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
EUROLITE SB-205 Soft Bag
Maximum load:	25 kg
Carrying handle:	2 pc/pcs
Material:	Nylon, water repellent
Color:	Black
Dimensions:	Width: 57,5 cm Depth: 17 cm Height: 12 cm
Weight:	300 g
