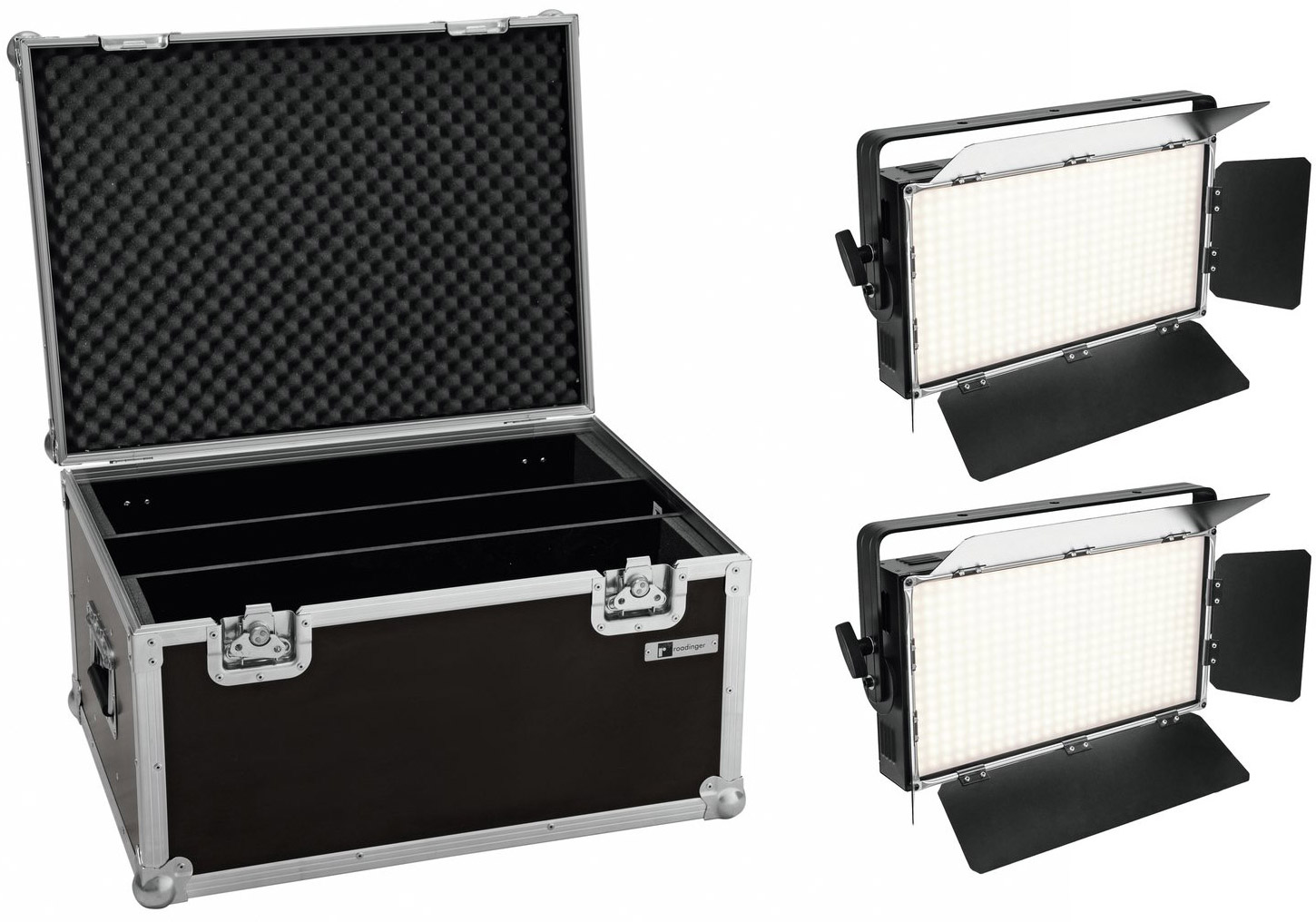

EUROLITE Set 2x LED PLL-360 3200K Panel + Case

€1,099.00 *

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Bulky goods

Item number: 120031375

2x surface light with 360 warm white LEDs and DMX including PRO flightcase EUROLITE LED PLL-360... more

All information about the product:

"EUROLITE Set 2x LED PLL-360 3200K Panel + Case"

2x surface light with 360 warm white LEDs and DMX including PRO flightcase

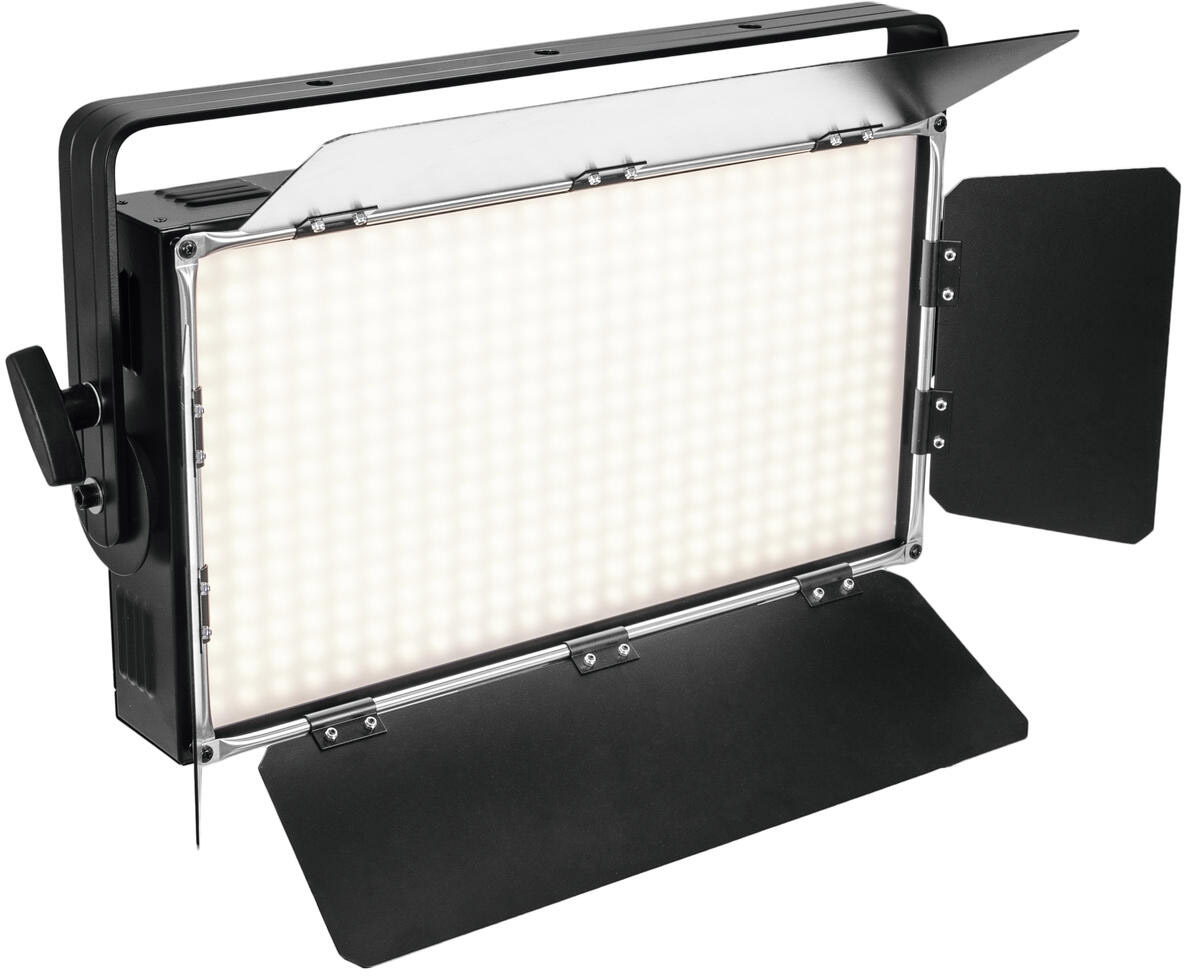

EUROLITE LED PLL-360 3200K Panel

Surface light with 360 warm white LEDs and DMX

360 powerful LEDs 0,5 W SMD 2835 warm white (WW)
Energy-saving, durable and environmentally friendly
frost filter provides a soft, homogeneous light
4 barn doors to avoid blinding the audience and for protection during transport
Silent operation
Dimmer electronic; Dimmer speed (step response) adjustable
Strobe effect
The device is cooled by passive convection cooling
Control via Quick select potentiometer for brightness; DMX; Master/slave function
Flicker-free
With a beam angle of 120°
Very high color rendering index (CRI)
With Mounting bracket
LCD display
Slim, rugged metal housing
For application areas such as: Video and photography; Stage
Preprogrammed in Light´J; Light Captain
Various versions available
Dimmable
Mains input and output for power linking up to 8 units
Rugged carrying handle

Package contents

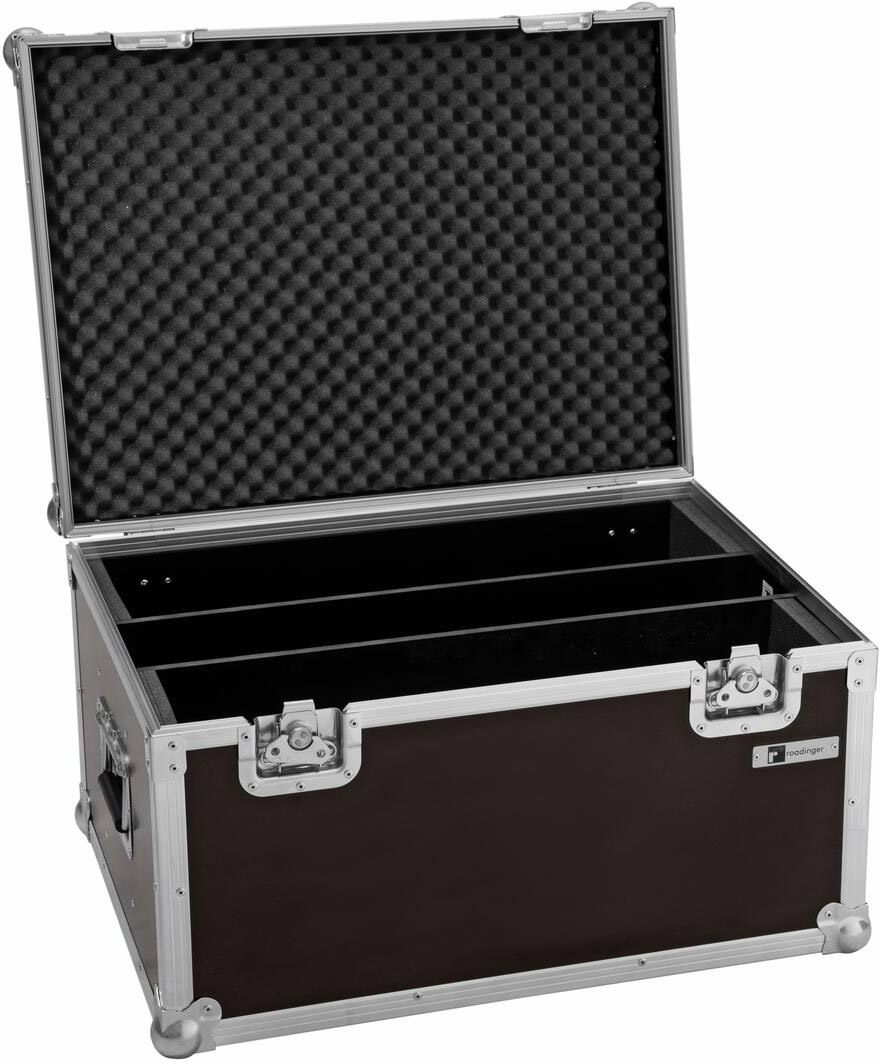

ROADINGER Flightcase 2x LED PLL-360

PRO flightcase for 2 x Eurolite LED PLL-360

With accessory compartment
With 2 Device compartments
High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
Interior with foam padding
Aluminum profile frames 25mm with rounded edges
2 hinged, chromium plated case handles
2 chrome tip-over locks
2 high-quality butterfly locks
Branded hardware
Made in Europe
For further information about this product, please refer to the Data Sheet under "Downloads"

Weight:	23,00 kg
EUROLITE LED PLL-360 3200K Panel
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	130 W
IP classification:	IP20
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:	IEC connector (F) mounting version
Lamp type:	LED lamp
Lamp specification:	Dimmable
LED:	360 x 0,5 W SMD 2835 warm white (WW)
Color temperature:	3200K
DMX channels:	3
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	Quick select potentiometer for brightness; DMX; Master/slave function
Preprogrammed in:	Light´J; Light Captain
Beam angle:	120°
Beam angle (1/2 peak):	120°
Color rendering index (CRI):	94 Ra
Illuminance in Lux (lx):	Warm white (WW) 3m: 403 lx, 6m: 118 lx
Luminous flux:	9367 lm
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	LCD display
Carrying handle:	1 pc/pcs
Dimensions:	Width: 57 cm Depth: 12 cm Height: 31 cm
Weight:	6,10 kg
Noise classification:	Class 0 (no noise at all)
Energy efficiency class (A - G):	F
ROADINGER Flightcase 2x LED PLL-360
Maximum load:	50 kg
Aluminum profile frames:	25 mm
Case handles:	2 pc/pcs
Stop hinge:	2 pc/pcs
Lock:	Butterfly lock: 2 pc/pcs
Use of brands:	Branded hardware
Material:	Birch multiplex, 7 mm; birch multiplex
Color:	Dark brown, laminated
Accessory compartment:	61 cm x 10,5 cm x 26 cm
Device compartment:	57 cm x 8 cm x 26 cm
Inside dimensions:	61 cm x 26 cm
Dimensions:	Width: 65 cm Depth: 37 cm Height: 48 cm
Weight:	10,80 kg
