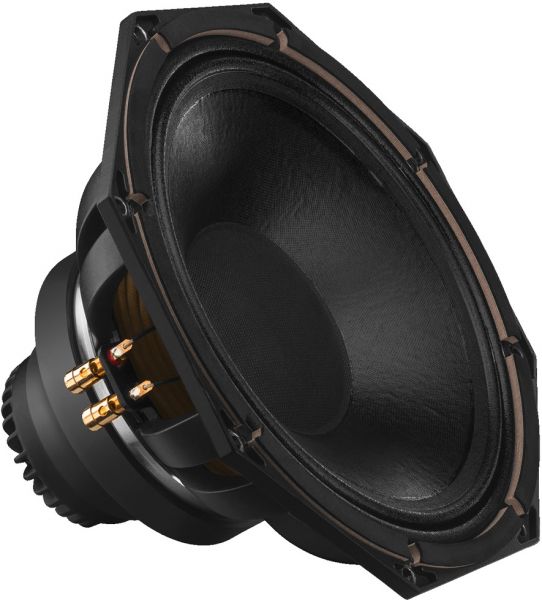

MONACOR SP-312CX 2-way coaxial PA speaker
€218.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 250130070
EAN: 4007754246599
MPN: 0102240
2-way coaxial PA speaker, with integrated horn tweeter. 30 cm (12") PA bass speaker of... more
All information about the product:
"MONACOR SP-312CX 2-way coaxial PA speaker"
2-way coaxial PA speaker,
with integrated horn tweeter.
- 30 cm (12") PA bass speaker of high power capability and high efficiency
- Coaxially arranged horn tweeter with 25 mm (1", voice coil = 44 mm) high-frequency driver
- Excellent sound characteristics
- Robust diecast basket with rear-ventilated centering spider
- 75 mm (3") heat-resistant voice coil on a polyamide voice coil former (TIL)
- Excellent and consistent radiation pattern
- Ideally suited for stage monitors or very compact full range speaker systems
- Operation only allowed with crossover network (recommended crossover frequency: 1,800 Hz)
Klang+Ton 08,09/2016
“Even at high volume levels which are anything but neighbour-friendly, you can still lean back and enjoy the sound - that's exactly how PA speakers should be. The Stage 12 is a well-balanced speaker system of high efficiency ...”
Klang+Ton 01/2015
“Excellent coaxial speaker.”

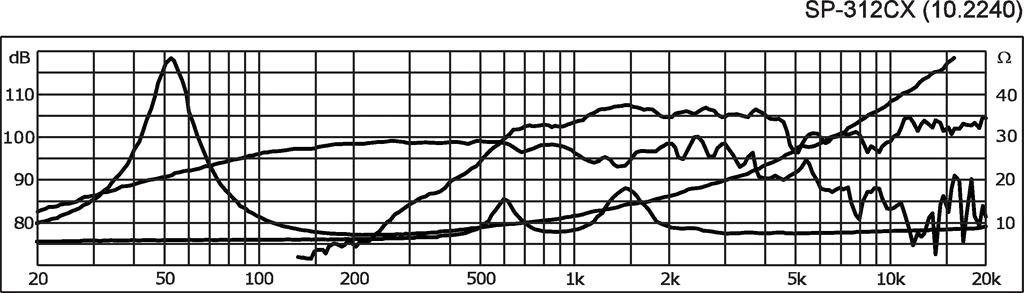

| Impedance (Z): | 8 O |
| Frequency range: | f3-3,000 Hz |
| Resonant frequency (fs): | 55 Hz (bass), 700 Hz (tweeter) |
| Power rating (RMS): | 250 W (bass) / 50 W (tweeter) |
| Peak music power output (MAX): | 500 W (bass) / 100 W (tweeter) |
| Sensitivity: | 97 dB (bass) / 106 dB (tweeter) |
| Suspension compl. (Cms): | 0.16 mm/N |
| Moving mass (Mms): | 56 g |
| Mech. Q factor (Qms): | 3.74 |
| Electr. Q factor (Qes): | 0.36 |
| Total Q factor (Qts): | 0.33 |
| Equivalent volume (Vas): | 64 l |
| DC resistance (Re): | 5.6 O |
| Force factor (BxL): | 16.90 Tm |
| Voice coil induct. (Le): | 1.1 mH |
| Voice coil diameter: | Ø 75 mm (bass) / Ø 44 mm (tweeter) |
| Voice coil former: | polyamide (TIL) |
| Linear excursion (XMAX): | ± 3.0 mm |
| Eff. cone area (Sd): | 540 cm2 |
| Magnet weight: | 1.8 kg |

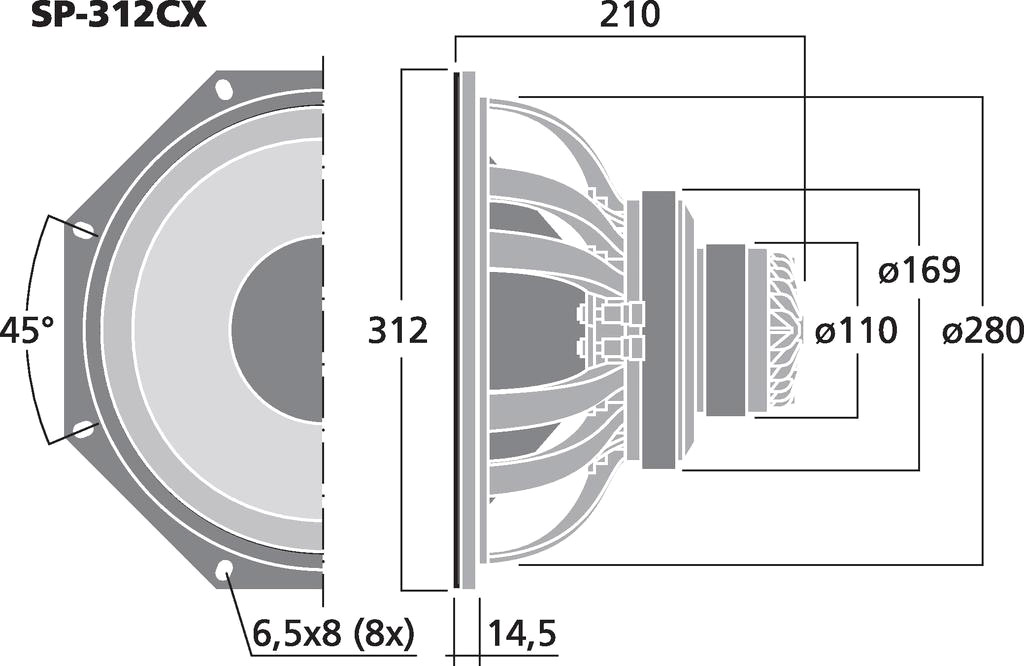

| Magnet diameter: | Ø 169 mm/Ø 110 mm |
| Mounting cutout: | Ø 280 mm |
| Mounting depth: | 195.5 mm |
| Dimensions: | 312 x 312 x 210 mm |
| Width: | 312 mm |
| Height: | 312 mm |
| Depth: | 210 mm |
| Colour: | black |
| Admiss. ambient temp.: | 0-40 °C |
| Weight: | 8.06 kg |
| Packing unit: | 1 |
| Type of speaker: | 12" |
| Packing dimensions (W x H x L): | 0.39 x 0.27 x 0.4 m |
| Gross weight: | 9.31 kg |
| Net weight: | 8.06 kg |
